REACT P

Pressure regulation damper
  • Pressure measurement up to 1.2 inWG, recommended control range 0.08-1.16 inWG
  • Rapid setting/reading of parameters via the controller’s lit display
  • Analog control and Modbus control
  • Can be easily insulated against condensation in the duct system
  • Commissioning without power possible with hand-held terminal Gruner GUIV3-M
  • Variants:

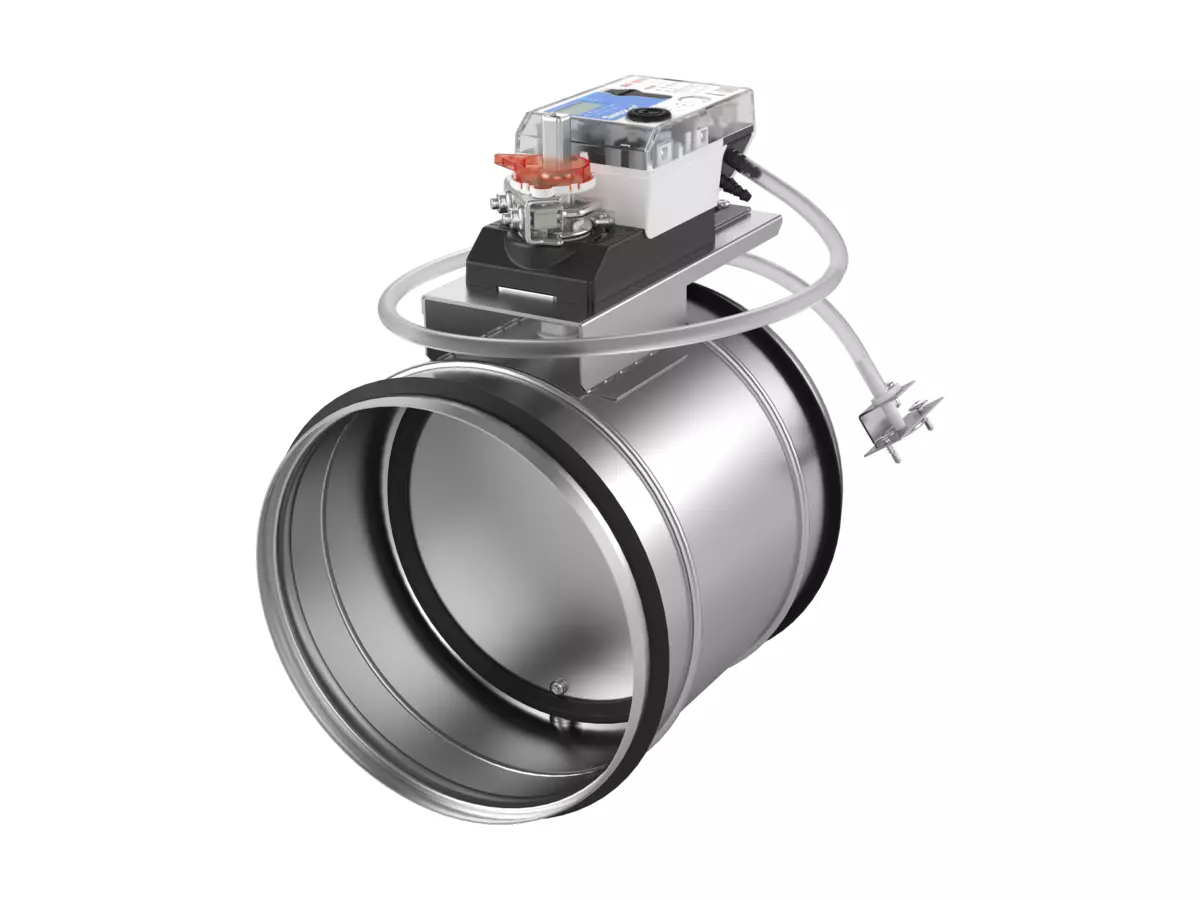

    • Circular connections: Ø4-24 in

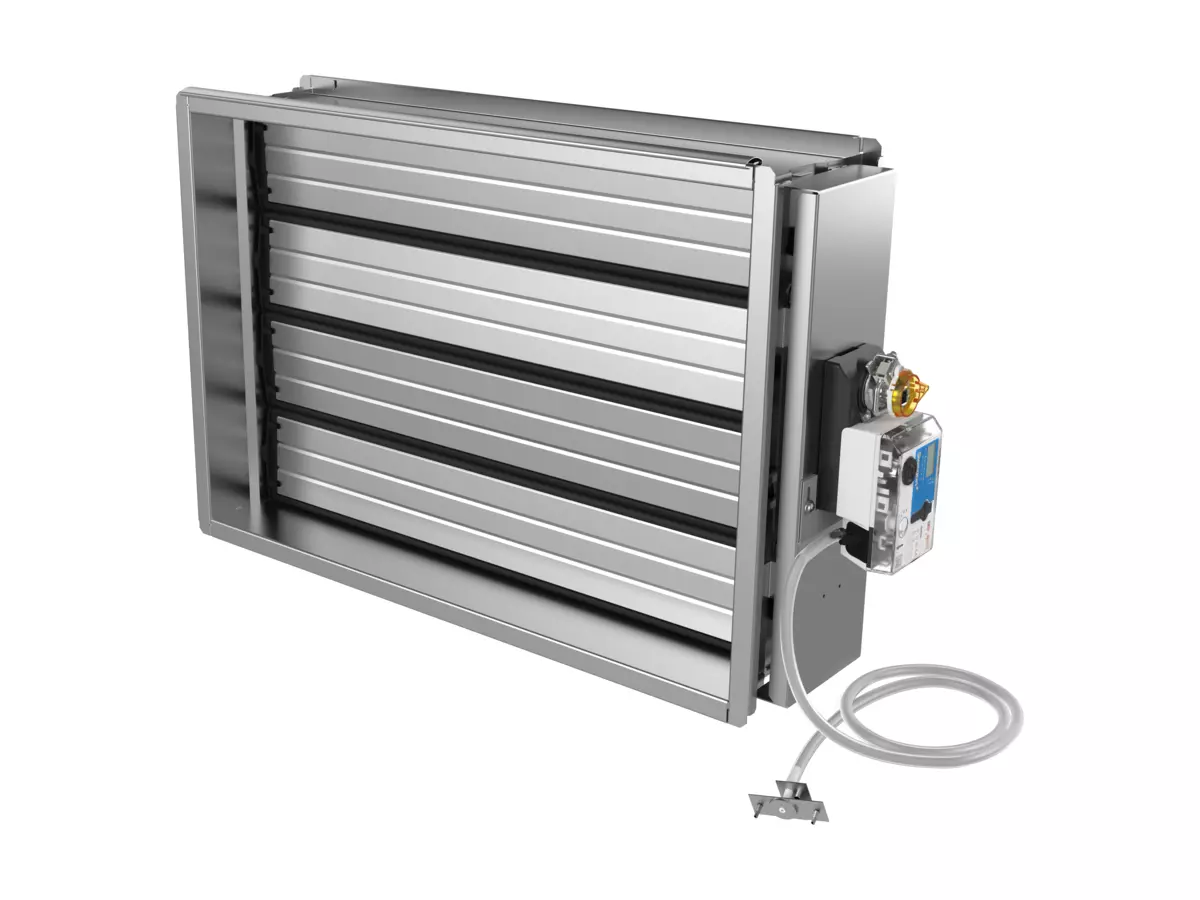

    • Rectangular connections: 8x8-55x28 in

Learn more about REACT.

  • Intended for pressure control of comfort ventilation.
  • Moist, cold and aggressive environments must be avoided.
  • Can be installed in both supply and exhaust air systems.
  • Pressure dependent and recommended minimum duct pressure 0.08 inWG.
