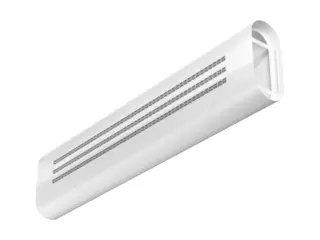

VZ-OAR (Supply air)

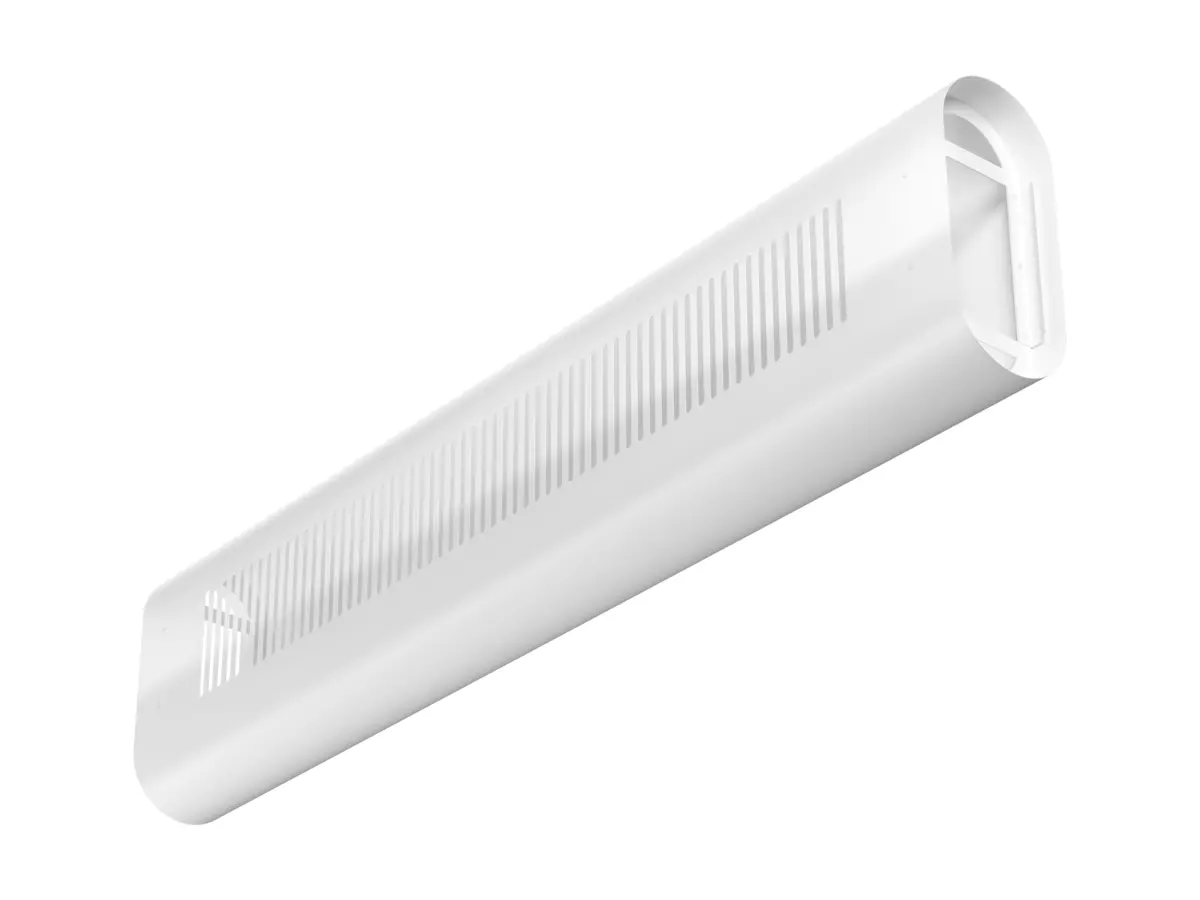

VZ-OAR-AL (extract air)
VZ-OAR
Oval duct diffuser for supply- or extract air
- Duct diffuser in an oval design
- Meets high decorative requirements for suspended installations
- Mounted horizontally as standard, but can also be mounted vertically
- High flexibility with the adjustable air deflectors
- Non-painted as standard
- Air deflectors in standard colour Jet Black RAL 9005
| VZ-OAR | ||||||
| Duct length LR (mm) | Perforation length A (mm) | Duct dimension | Number of perforation rows | Recommended air flow V | ||
| W (mm) | H (mm) | l/s | m3/h | |||
| 1490 | 1200 | 350 - 1800 | 160 - 500 | 1 | 31 | 112 |
| 350 - 1800 | 160 - 500 | 2 | 62 | 224 | ||
| 350 - 1800 | 160 - 500 | 3 | 93 | 336 | ||
| 350 - 1800* | 160 - 500* | 4 | 124 | 448 | ||
| 500 - 1800* | 160 - 500* | 5 | 156 | 560 | ||
| 500 - 1800* | 160 - 500* | 6 | 187 | 672 | ||
| 630 - 1800* | 150 - 500* | 8 | 249 | 896 | ||
| More sizes and information on duct dimensions is available in the product sheet. *Does not apply to the entire size range, more information is available in the product sheet. | ||||||
