USE

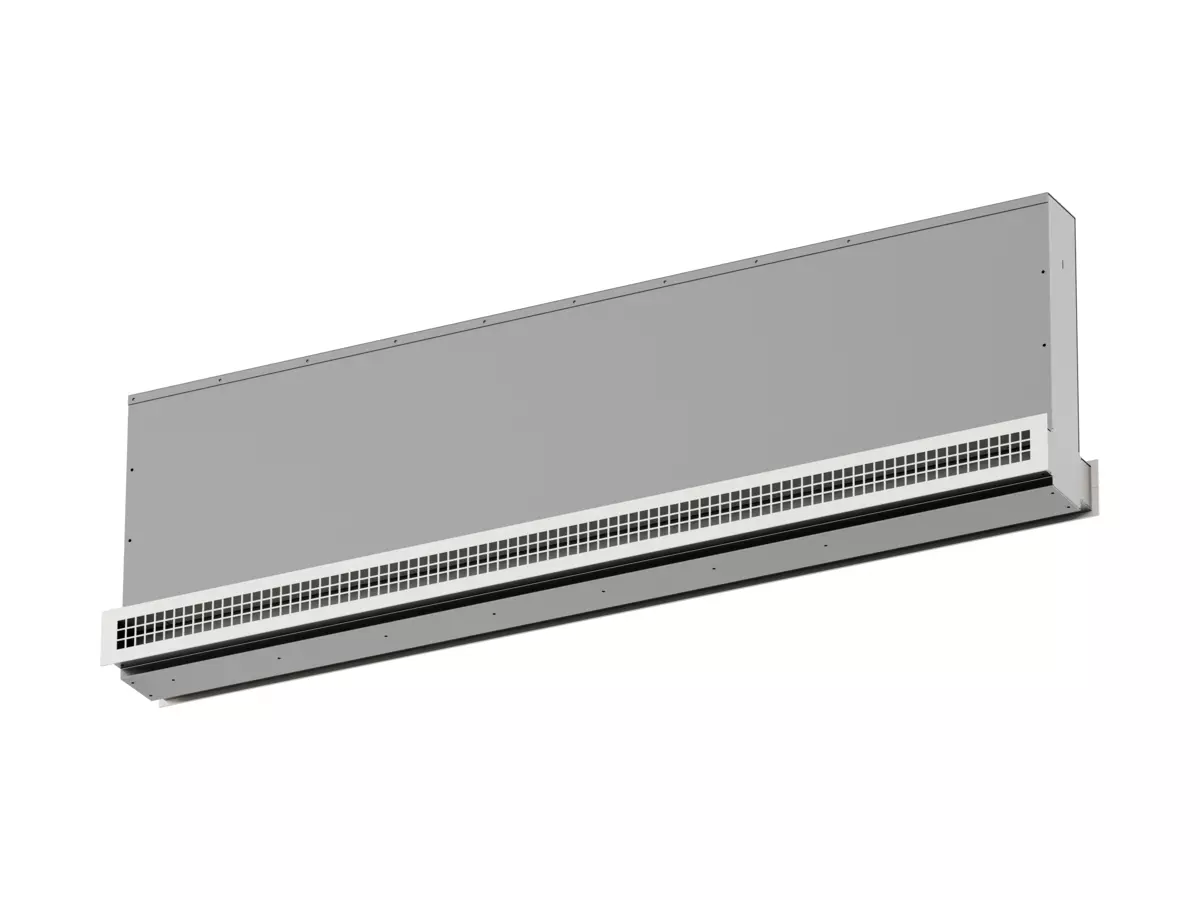

The USE air transfer unit with integrated sound attenuation is designed for installation in drywall constructions. The product is available in a Z‑shaped or T‑shaped variant. The internal surfaces are lined with sound‑absorbing material made from melamine resin (building material class B1).

The transfer unit is available with several different diffuser faces, or without for a shadow gap installation.

USE provides an air passage between two rooms, such as an office and a hallway, when conventional duct routing is not possible, for example due to the absence of a suspended ceiling. The air transfer unit is specifically engineered to minimize the transmission of speech sound through walls.

Transfer unit

• Made of galvanised steel.
• Lined with sound-absorbing, abrasion-resistant absorption material in building material class B1 according to DIN 4102-1.

Diffuser face

• Made of galvanised steel.
• Standard colour:
  • RAL 9003, signal white, gloss 70
• Alternative standard colours:
  • RAL 9010, pure white, gloss 70
  • RAL 9006, white aluminium, gloss 70
  • RAL 9005, jet black, gloss 70
  • RAL 7035, light grey, gloss 70

• Other colours available on request.
• Sound-absorbing, abrasion-resistant absorption material in building material class A2.

Diffuser face is fastened using clamping springs through the panel of the perforation.

USE air transfer unit with integrated sound attenuation and the following features:

• For installation in drywalls.
• Available in a T- or Z-shape.
• Made of galvanised steel.
• Lined with sound-absorbing material, building material class B1 or A2.
• Diffuser faces made of galvanised steel, fastened using clamping springs.
  • Standard colour white RAL 9003, other colours available on request.
• Can be used without a diffuser face as shadow gap installation.
