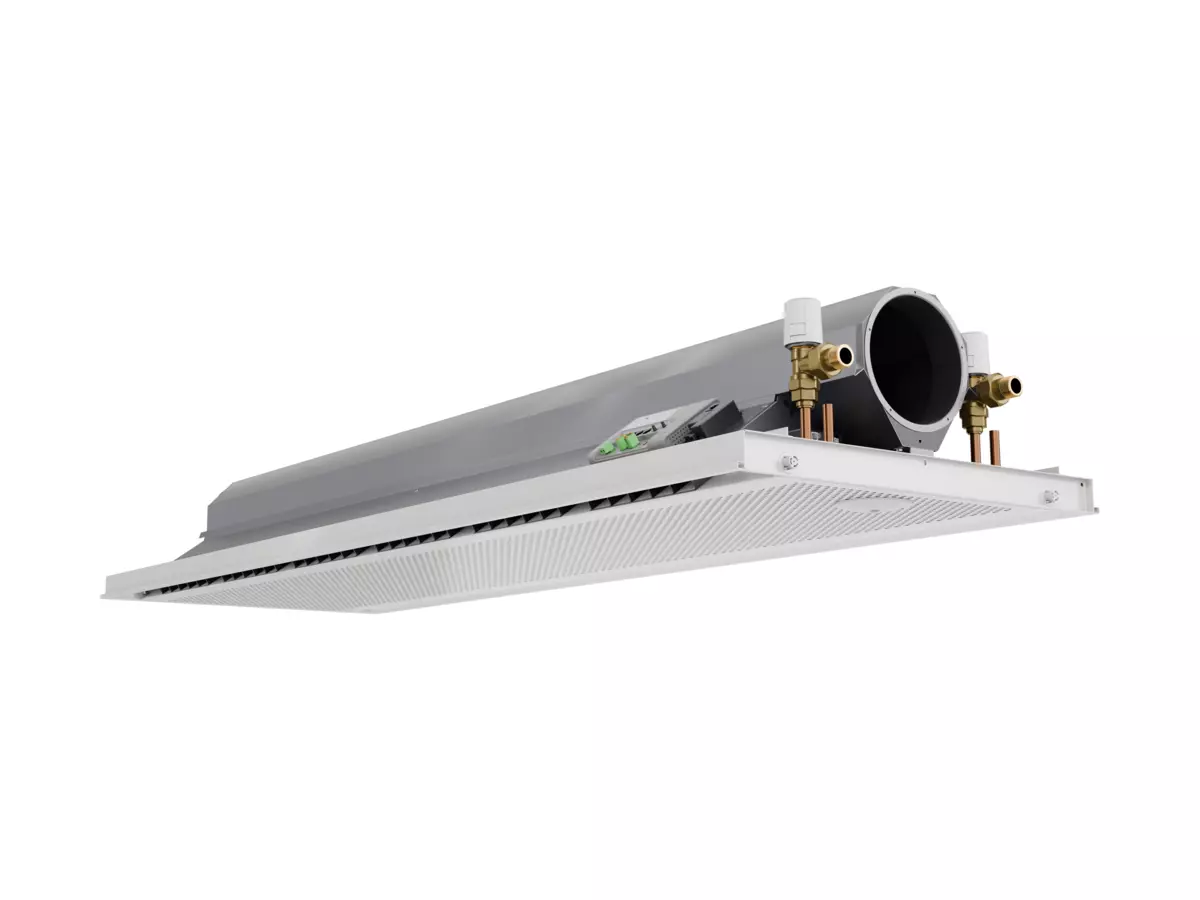

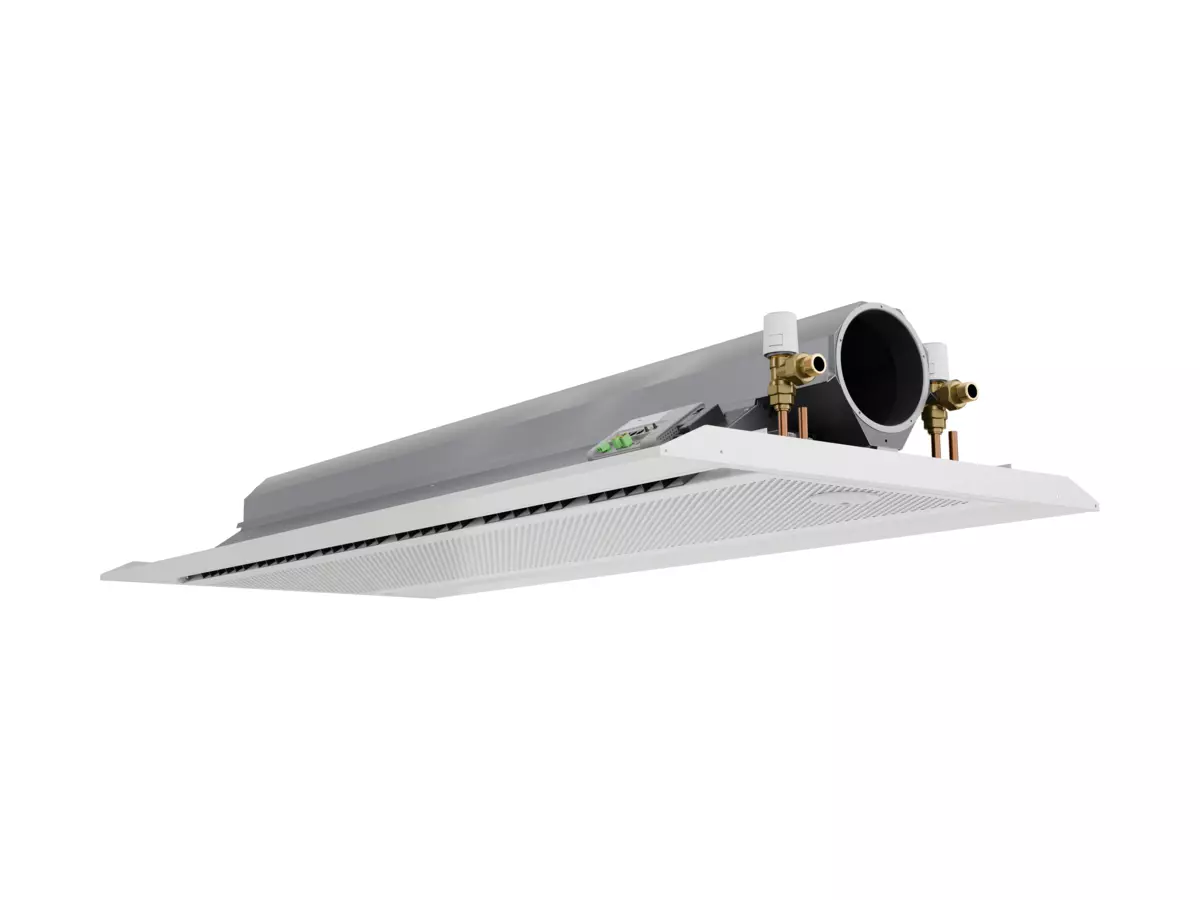

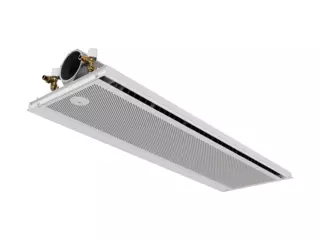

WISE Pacific

Chilled beam for Swegon’s WISE System for demand-controlled ventilation

Smart Climate Control - Automatically adjusts air and water flow for optimal comfort and efficiency.
Wireless Integration - Fully compatible with the Swegon WISE system for easy setup and monitoring.
Stable Performance - Pressure-independent control ensures consistent airflow and comfort.
Modular design - Three-module system for adaptable, optimized indoor climate solutions.
Integrated SA/EA Air Modules - Optional supply and extract modules for a seamless look.

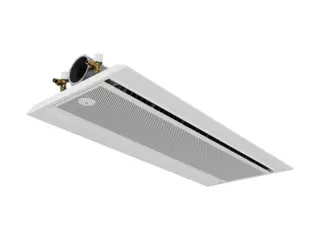

Coanda Wing Option - Optimized air distribution for open ceilings, eliminating drafts.

Calculate with your requirements

Design

Material and surface treatment

Material

The air module is manufactured in RRP recycled and renewably produced galvanized sheet steel (zinc plated)

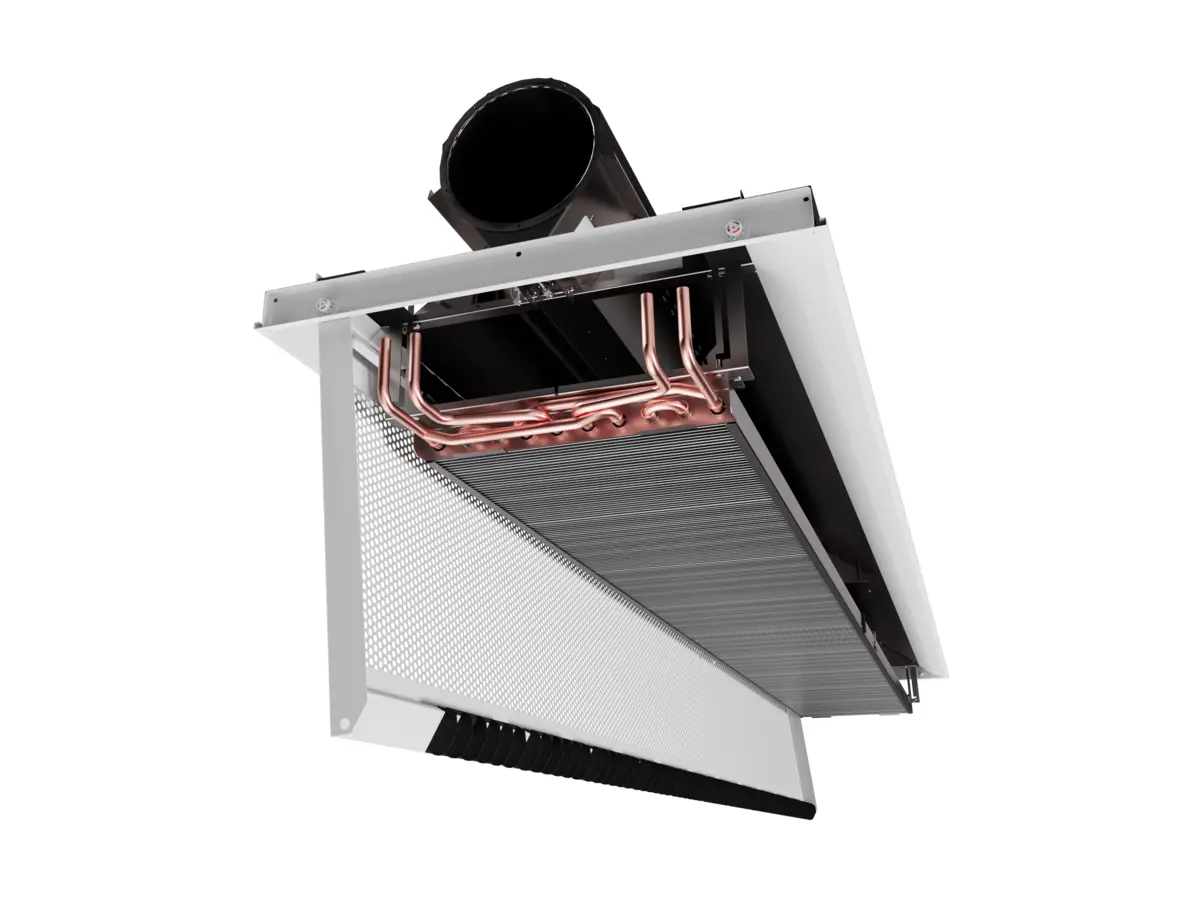

The capacity module (coil) is in copper and aluminium.
The design module (face plate) is in RRP recycled and renewably produced galvanized sheet steel (zinc plated) and painted in desired colour.

Standard colour:

RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
RAL 9010 White (Pure white), gloss ratio 30-40%)
RAL 9005 Black (Jet black), gloss ratio 30-40%)
RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)

Other colours available on request

Installation, commissioning and maintenance

Mounting

The WISE Pacific is supplied with four mounting brackets and self-tapping screws packaged separately and supplied with each unit. The pre-punched holes in each mounting bracket simplify the fastening work.

The mounting brackets are designed enabling them to be turned in any optional direction depending to suit type of suspension system selected. Turned inward, the mounting brackets offer simple installation by means of mounting strips. Turned outward, the mounting brackets work at their best for suspending the beams by means of size M8 threaded rods.

Mounting strips and threaded rods are not supplied with the unit. If assembly fittings are required, these can be ordered separately.

Connecting water

The water pipes are always placed on the product’s short side. Connect the water pipes using push-on couplings or compression ring couplings when the product is ordered without valves. Note that compression ring couplings require support sleeves inside the pipes.

Do not use solder couplings to connect the water pipes. High temperatures can damage the unit’s existing soldered joints.

Flexible connecting hoses for water are available for flat-end pipes and valves, and can be ordered separately.

PACIFIC SA/EA

PACIFIC SA/EA module for installation and integration into the PACIFIC climate beam.

SYST MS

Assembly fitting

Filter

Include Accessory documents

Document	Product	Document type
Environmental Product Declaration (pdf 606.98kB)	WISE, REACT and AWC control equipment for Chilled beams	Quality
PACIFIC family (pdf 1.62MB)	PACIFIC, PACIFIC AWC, WISE Pacific	Brochure
Eurovent certificate (pdf 197.65kB)	Chilled beams	Quality
